400L Diesel Transfer Tank: A Practical Guide for Farms and Job Sites

400L Diesel Tank Specifications

Understanding the specifications of a 400L portable diesel tank helps buyers match the product to their operational requirements. The following tables summarize the key technical parameters.

Capacity and Dimensions

The empty weight of approximately 53 kg makes a 400L tank manageable for two-person positioning, though mechanical assistance (forklift or pallet jack) is recommended when the tank is full. Most models include four forklift pockets on the base and six integrated strap recesses for secure tie-down during transport.

Material and Construction

Rotational molding produces a seamless tank wall with uniform thickness, eliminating weld points that could become leak paths over time (source: Rotovia). UV stabilizers added to the raw HDPE resin protect the tank from degradation when stored outdoors in direct sunlight—a common scenario on farms and remote job sites.

Standard Pump Package

The 12V self-priming pump is the most common configuration for farm and job site use because it draws power directly from a vehicle battery or standalone 12V battery setup (source: Silvan Australia). The automatic shut-off nozzle prevents overfilling—a practical safety feature when fueling in wind, on uneven ground, or while multitasking.

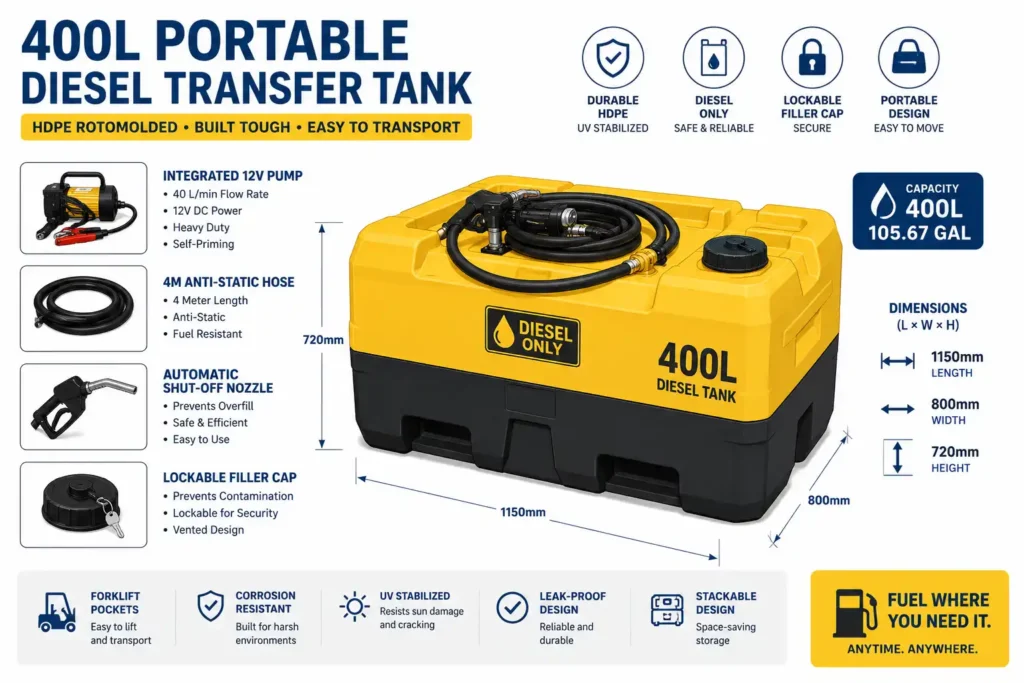

Key Features of a 400L Portable Diesel Tank

A well-designed 400L portable diesel tank incorporates several features that differentiate it from smaller portable containers or improvised solutions. Understanding these features helps buyers evaluate whether a given model meets their operational needs.

1. Seamless Rotomolded HDPE Construction

Unlike steel tanks that can corrode over time, HDPE tanks are inherently rust-proof. The rotational molding process creates a one-piece, seamless vessel with consistent wall thickness, reducing stress concentrations that can lead to cracking or leaks (source: Rotovia).

2. ADR/DOT Transport Compliance

Under the Australian Dangerous Goods Code (ADR 1.1.3.1 C), a 400L portable diesel tank can be transported on a pickup truck or van when properly secured and when the tank is not being used as the vehicle’s fuel tank (source: Dymac Global). This exemption eliminates the need for specialized fuel transport vehicles for many on-farm and on-site refueling scenarios.

3. 12V Self-Priming Pump

A self-priming pump eliminates the need to manually fill the suction line before each use. For operators moving between multiple pieces of equipment throughout the day, this feature significantly reduces downtime and frustration.

4. Automatic Shut-Off Nozzle

Automatic shut-off nozzles stop fuel flow when the target tank reaches capacity. This feature reduces operator error, minimizes spillage, and protects against overfill that could contaminate soil or equipment.

5. Lockable Fill Cap and Pump Cover

Tamper-resistant caps and lockable pump covers deter unauthorized fuel use—a practical consideration for equipment stored in unsecured areas. The lockable filler cap also prevents debris, dust, and rainwater from entering the tank during storage.

6. Integrated Tie-Down Points

Most 400L tanks include six integrated strap recesses and D-ring attachment points. These allow operators to secure the tank to a truck bed or trailer without additional mounting hardware, reducing movement and potential damage during transport.

7. Forklift Pockets

Four forklift pockets on the tank base enable mechanical lifting for repositioning when the tank is full. This feature is essential for operations that load and unload tanks frequently.

8. Multi-Voltage Pump Options

From 12V DC for battery-powered portability to AC 220V for fixed-site installations, the availability of multiple pump voltage options means a 400L tank can serve diverse operational contexts—from remote field refueling to warehouse fueling stations.

Best Applications: Farms vs Job Sites

The 400L capacity serves two primary market segments: agricultural operations and construction/industrial sites. Each segment has distinct operational patterns that make the 400L tank an ideal fit.

Farm Applications

On farms, a 400L diesel transfer tank typically supports:

• Tractor fleets (3–5 units): A 100–200 HP tractor burns approximately 8–15 liters per hour under load. With a 400L tank providing 380L of safe capacity, a single tank delivers 25–47 hours of combined runtime across the fleet before requiring a refill.
• Combine harvesters: Larger harvesting equipment may consume 20–30 L/hr during peak harvest season. A 400L tank provides 13–19 hours of operation—enough for most full-day harvesting sessions without refueling.
• Irrigation pumps: Stationary irrigation pumps typically run 5–10 L/hr, giving a 400L tank 38–76 hours of runtime for seasonal water management.
• Generator backup: A 20–50 kW standby generator might consume 3–8 L/hr, providing 47–126 hours of backup power from a single 400L tank.

Job Site Applications

On construction and industrial sites, the 400L tank serves:

• Excavators and loaders: A 150–300 HP excavator burns approximately 12–20 L/hr. A full 400L tank (380L usable) provides 19–31 hours of operation—covering most full-shift requirements.
• Skid steers and telehandlers: Smaller equipment consuming 5–10 L/hr can operate 38–76 hours on a single tank, reducing trips to bulk fuel storage.
• Mobile service trucks: Service vehicles equipped with a 400L tank can perform multiple refueling stops across a job site without returning to a central fuel point.
• Remote generators: For generators at remote locations without grid power, a 400L tank provides sufficient fuel autonomy for 2–7 days depending on load.

Decision Framework: 400L vs Alternatives

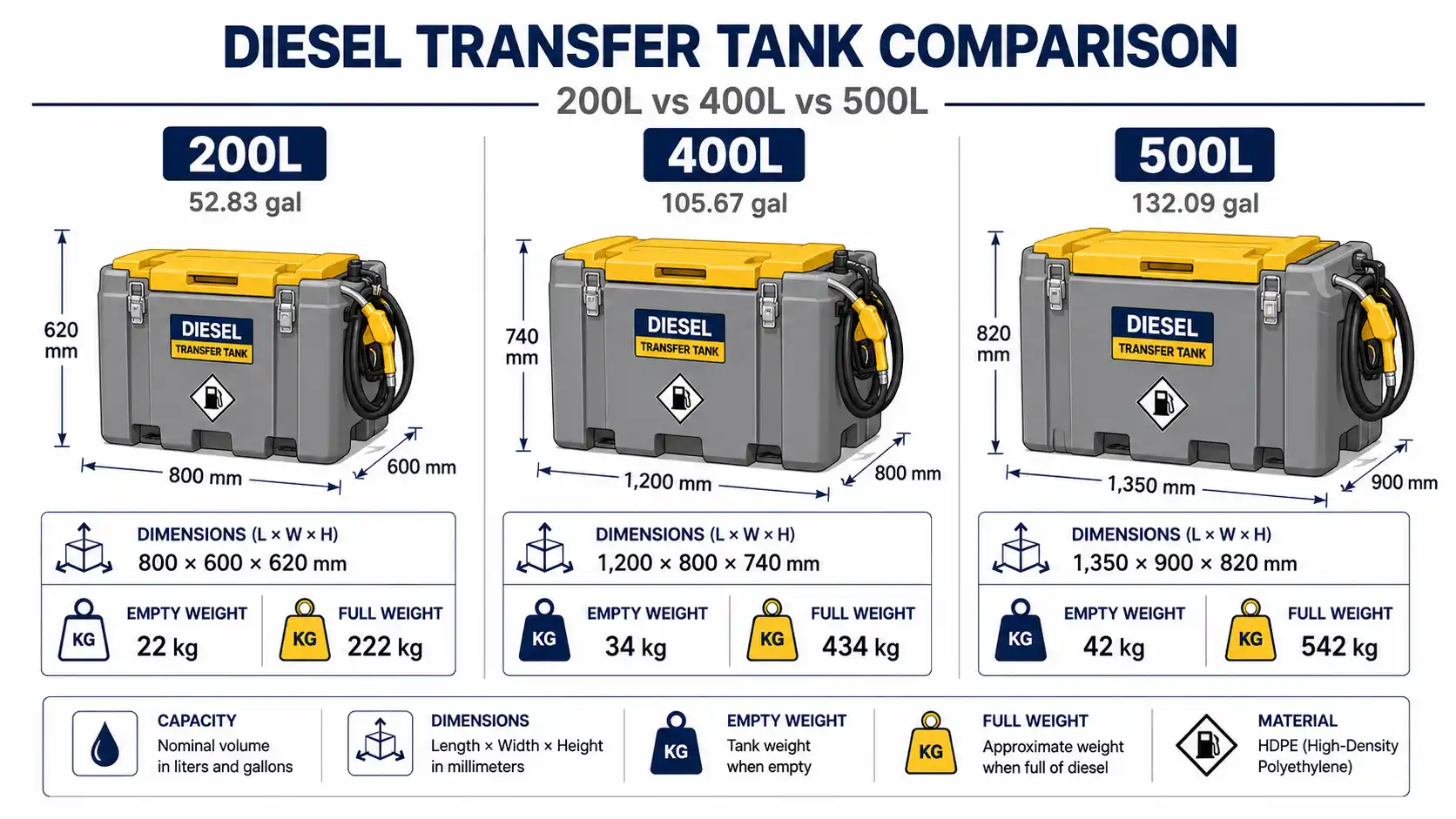

400L vs 200L vs 500L: Which Capacity Do You Need?

Choosing the right capacity depends on understanding how tank size translates to operational fit. The following comparison table clarifies the trade-offs.

Capacity Comparison Table

The 400L tank hits a practical middle ground: enough capacity for week-long autonomy on most mid-size operations, while remaining light enough for two-person positioning and ADR-compliant transport on standard vehicles.

For operators who are still deciding between 200L and 400L, the key question is: How many pieces of equipment will this tank serve in a typical week, and how far are they from a bulk fuel source? If the answer involves more than three units or distances exceeding practical round-trips, the 400L is the better investment.

Compare 200L and 400L Tank Options

Pump Options for 400L Diesel Tanks

Selecting the right pump configuration affects operational efficiency and compatibility with existing equipment. The following comparison outlines the four main options.

Pump Comparison Table

The 12V DC pump is the most versatile option for operators who move the tank between locations. It draws power from a standard vehicle battery or a small 12V deep-cycle battery, eliminating the need for generators or fixed power infrastructure.

Note that “open flow” ratings (e.g., 40 L/min) represent pump output under ideal conditions. Actual dispensing flow is affected by hose length, hose diameter, fittings, filters, and battery voltage. A slightly slower but consistent flow typically proves more reliable in field conditions (source: Diesel Tanker Buyer Guide).

Safety and Regulations: ADR and DOT Compliance

Transporting diesel fuel, even in an approved portable tank, involves regulatory compliance. Understanding the key requirements prevents fines and ensures safe operation.

ADR Exemption (Australia/EU)

The ADR 1.1.3.1 C exemption permits the transport of portable fuel tanks on vehicles without triggering full dangerous goods transport requirements—provided certain conditions are met (source: Dymac Global):

• The tank must be designed for portable use (not permanently installed)
• The tank must be secured against movement during transport
• The transport must be incidental to the primary use of the equipment being fueled
• The tank capacity must not exceed the limits specified for the exemption category

Under this exemption, a 400L tank can be transported on a pickup truck bed or trailer to reach remote equipment without requiring a dedicated fuel transport vehicle.

General Safety Practices

Regardless of regulatory exemptions, operators should follow these practical safety guidelines (source: OSHA Diesel Storage guidance):

• Inspect before each use: Check hose condition, nozzle operation, and fitting integrity. Replace worn components before they fail.
• Control static: Keep the nozzle in contact with the fill neck during fueling to dissipate static charge.
• Plan for spills: Keep absorbent materials on hand; avoid fueling near drains or waterways.
• Secure during transport: Use integrated strap recesses and D-rings to prevent tank movement. A 400L tank full of diesel weighs approximately 391 kg—unsecured, it becomes a serious hazard during braking or cornering.
• Store properly: Keep tanks in shaded areas when possible; UV-stabilized HDPE resists degradation but prolonged direct sun exposure accelerates surface wear.

Buying Checklist for 400L Diesel Transfer Tanks

Before placing an order, verify the following checklist with your supplier:

Frequently Asked Questions

How many gallons is a 400L diesel tank?

A 400L diesel tank holds approximately 105.67 US gallons (87.99 Imperial gallons). The safe fill capacity, accounting for thermal expansion, is 380L (about 100.4 US gallons).

How long does a 400L tank last on a tractor?

For a 100–200 HP tractor burning 8–15 liters per hour, a 400L tank (380L usable) provides 25–47 hours of combined runtime. Actual duration depends on engine load, field conditions, and duty cycle.

Can a 400L diesel tank be transported on a truck?

Yes. Under ADR 1.1.3.1 C exemption, a properly secured 400L portable diesel tank can be transported on a pickup truck or van without specialized fuel transport certification. Always use integrated tie-down points and strap recesses to secure the tank during transport.

What pump comes with a 400L diesel tank?

Most 400L tanks include a 12V DC self-priming pump delivering 40 L/min as standard. Optional upgrades include 24V DC, AC 110V/220V, and manual rotary pumps. The 12V option is most common for farm and job site use because it operates from standard vehicle batteries.

Is HDPE better than steel for a portable diesel tank?

HDPE offers advantages in weight (lighter), corrosion resistance (no rust), and impact absorption (better for rough handling). Steel tanks remain preferred for fixed installations where weight is less of a concern. For portable applications, HDPE’s durability-to-weight ratio typically makes it the preferred choice (source: Plastic Tank Companies).

What is the lead time for OEM 400L diesel tanks?

For custom branding orders (color, logo, packaging), typical lead times are 20–30 days for production plus shipping. Standard models from stock may ship faster. Custom color matching adds 3–5 days; custom packaging adds 5–7 days.

How do I prevent diesel contamination?

Use a foot screen filter on the suction line, keep all caps and seals closed when not in use, and consider adding a particulate filter at the dispensing point. Modern diesel engines with high-pressure fuel injection systems are sensitive to water and particulate contamination—clean fuel practices protect both the tank and the equipment.

What is the minimum order quantity for OEM 400L tanks?

OEM orders for 400L portable diesel tanks typically start at 30 units for standard configurations. Custom colors or branding may require higher minimums or affect pricing. For small-quantity branded orders, consult with the supplier on available options.

OEM Customization Options

For distributors, dealers, and fleet operators seeking branded solutions, most manufacturers offer OEM customization across several dimensions.

Available Customization Options

For operators seeking a reliable Chinese manufacturer for portable diesel tank OEM orders, refer to our OEM portable fuel tank guide or request a quote for specific requirements.

Request 400L Tank OEM Quote
